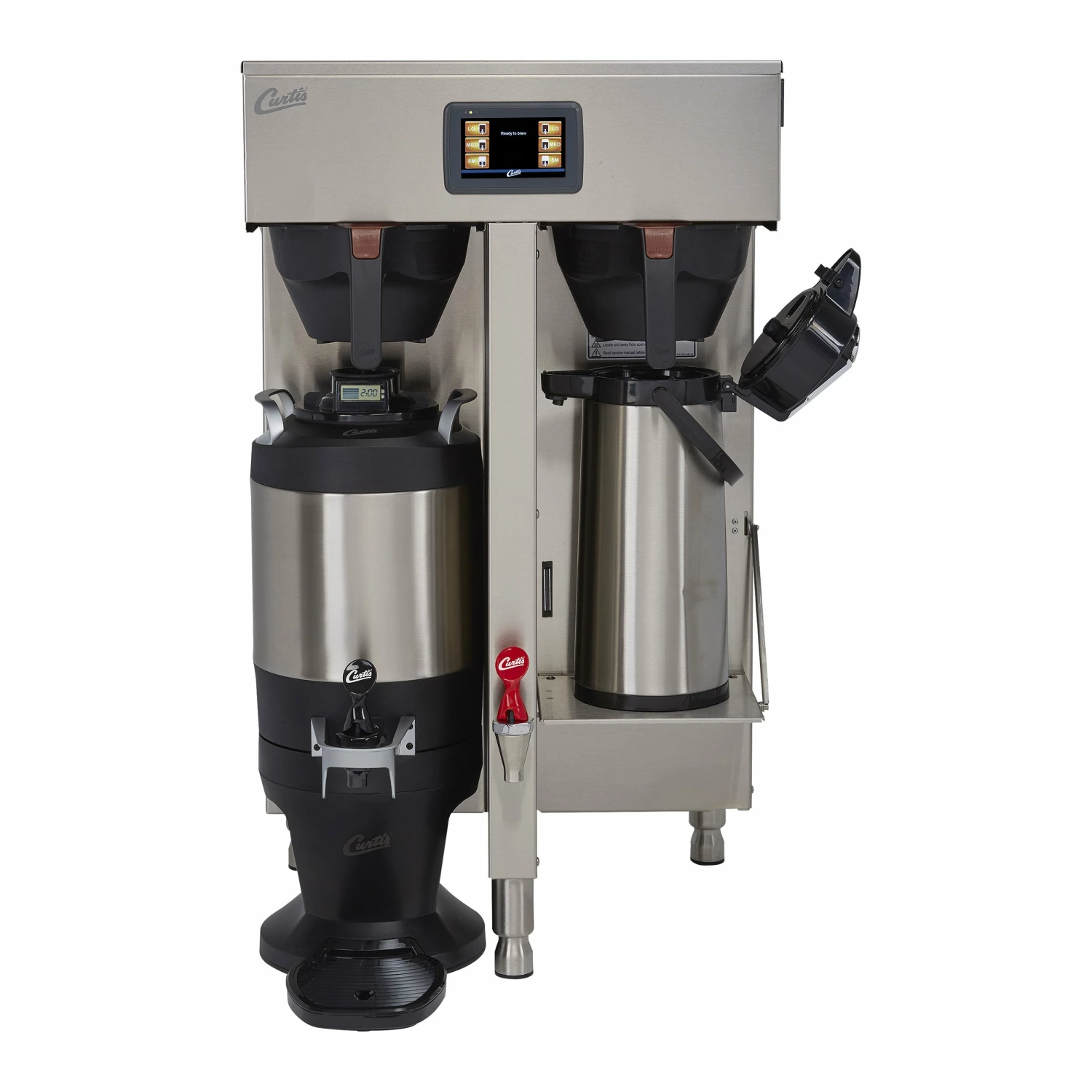

Wilbur Curtis G4 1.5 Gallon Twin Coffee Brewer W/ Shelf

Introducing the next generation of coffee brewing. The G4 delivers high-tech advancements to make serving hot, fresh coffee even easier. Its simple, intuitive, icon-driven interface includes features that will simplify brewing operations, provide fast and intuitive training and reduce service calls and costs. All with the touch of a button.

G4 Twin Coffee Brewer With Shelf Features

• Generation Four (G4) Digital Control Module – Large, 4.3” touch screen. Icon-driven interface streamlines operation.
• On-Screen Instructions – Provides fast, intuitive training; reduces service calls.
• Built-in Self Diagnostic System – Includes real-time feedback of the brewing process and energy-saving mode.
• Gold Cup Series – Digital Control Module provides precise control over all aspects of brewing: time, temperature, volume plus specialty coffee needs from pre-infusion to pulse- brewing to water bypass.
• Pre-set, One-Touch Global Recipes – Based on coffee type, grind, and weight. Simplifies profile setting for gourmet results every time.
• Industry’s Most Effective Mineral Tolerant Design – Patented fast-wetting AFS Sprayhead and non-immersed water temperature sensor.

Recommended dispensers sold separately; TXSG1501S600, TLXA2201G000, & TFT15G.

About the Brand

Wilbur Curtis has been a top-quality brand in the batch brewer business since 1941 and is still a family-run business. Consequently, they continually offer the market innovative and advanced technologies and were the first company to introduce a satellite brewing system: an advancement that allows for remote coffee stations making brewing easier with the ability to track freshness from across the room. Their brewers are also known for some of the best extractions among the classic brew batch manufacturers and offer precise control over all aspects of brewing; time, temperature, volume, plus specialty coffee needs like pre-infusion, pulse-brewing, and water bypass. Wilbur Curtis also demonstrates environmental responsibility for their entire business operation and offers equipment that is eco-friendly. A few examples are the use of solar panels at headquarters and the support of World Coffee Research. They also take reuse to a whole new level by reusing shipping materials and save 1800 liters of water every day by reusing water that would otherwise be wasted on brewer wet-tests. In addition, Wilbur Curtis equipment offers brews with gourmet results and brewing equipment that’s intelligent, intuitive, instinctive, and artistic. Start brewing with one today.

Split

DIMENSIONS
Height (in.)	35.130″
Width (in.)	20.130″
Depth (in.)	20.750″
Brewer Fill Weight	132.6 lbs.
ELECTRICAL
Phase	1
Volts	220V
Amps	23.0/34.5A
Heat Configuration	3x2500W
Wire	3W+G
Watts	5100/7600W
Hertz	50/60 Hz
WATER
Connector	3/8″ Flare
Pressure	20 – 90 psi
Min. Flow Rate	2.0 GPM
Tank Volume	6.9 Gal.
Brewed GAL/HR	15.0/21.0
GENERAL
Certification	NSF, UL Listed.
Warning	Proposition 65 Warning – Applies to the State of CA only.
