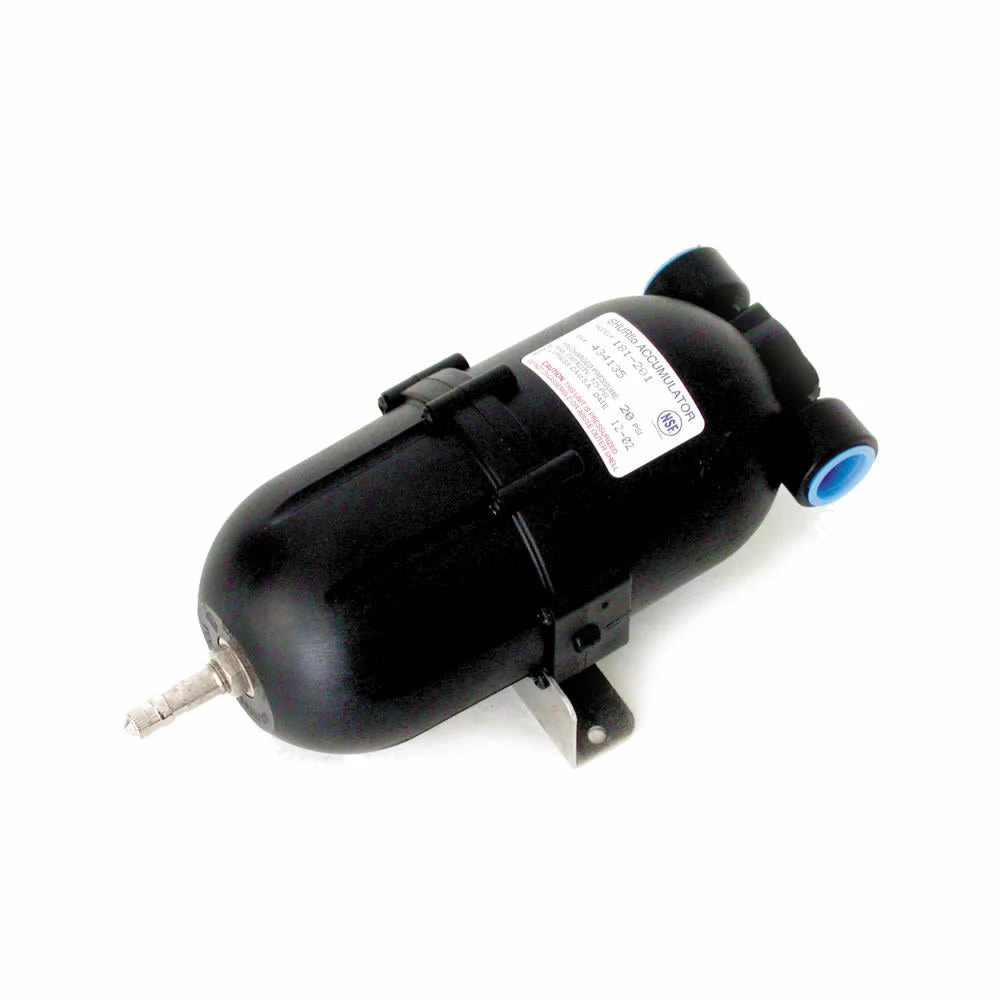

SHURflo Accumulator Tank Water Pump System

This accumulator tank may be used with any water pump, alone or in multiples. Pre-pressurized to 20 PSI at the factory. Water flow remains smooth and constant. Extends pump life due to less switch cycling and motor heat. Reduces noise levels of pump cycles and water hammer. No taste of odor from bladder.

Split

• Maximum Working Pressure: 125 psi [25 bar]
• Total Volume: (gas/liquid): 21 oz. [620 ml]
• Temperature Range: 34-120° F [1-49°C]
• Diameter: 3 3/4” [95 mm]
• Length: 8 3/4” [22 cm]
• Listings: NSF listed
• Housing Material: Nylon
• Bladder Material: Butyl
• Threaded Ports: (-201, -202, -203) 1/2-14F-NPT
• Std. fittings supplied with SHURflo pumps are 3/8″ barb fittings.
• Two 7/32″ [5.3 mm] f holes at 4-1/16″ [103 mm] centerline apart
