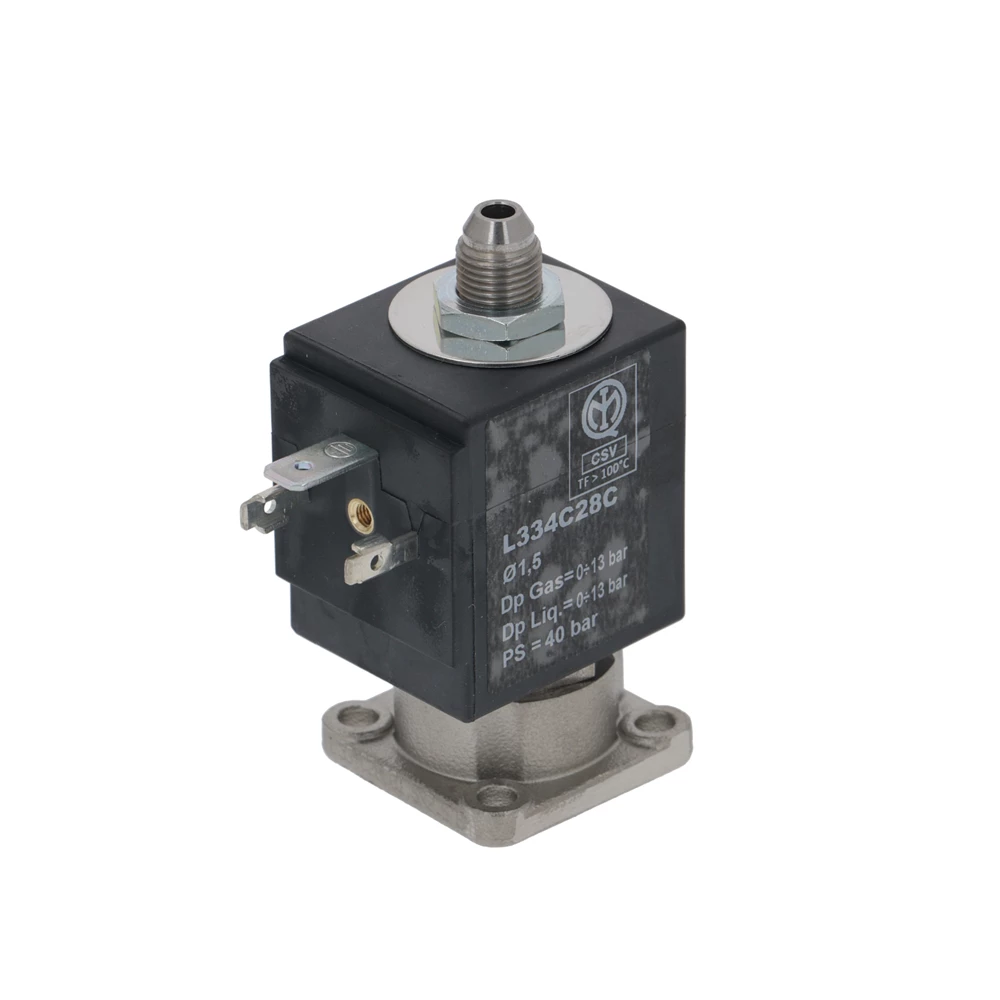

Rancilio Solenoids Asco 115/120V 60Hz Stainless Steel Three-way Solenoid

This solenoid uses the large W_635 voltage connector.

All stainless steel solenoid, NSF approved. Complete assembly, including flange o-rings.  These were Lucifer, then Sirai, now Asco.

GENERAL FEATURES

Direct acting solenoid valve, designed for sub-base mounting or directly on the equipment. Inlet and outlet ports asymmetrically placed on the bottom of the body.
Valve delivered with sealing O-ring (FPM).
Suitable to shut off liquid and gaseous fluids particularly suitable to shut off overheated water and steam (verify the compatibility of fluid with material in contact).

Split

• Maximum allowable pressure (PS): 40 bar
• Opening time: ~15ms
• Closing time: ~15ms
• Fluid temperature: -10°C +170°C
• Max viscosity 5°E: (~37 cStokes or mm2/s)

MATERIALS IN CONTACT WITH FLUID

• Body:  Stainless steel
• Sealing: RUBY
• Internal components: Stainless steel
• Seat: Stainless steel
• Core tube: Stainless steel
• Shading coil: Copper

COIL

• Continuous duty: ED 100%
• Encapsulation material: PET (polyetylene-terephtalate) fibreglass reinforced
• Insulation class: F (155°C) – UL
• Ambient temperature: -10°C +50°C
• Electric connection: DIN 46340 – 3 poles plug connectors (EN175301-803)
• Protection degree: IP 65 (EN 60529) with plug connectors
• 115V/50Hz (120V/60Hz)
